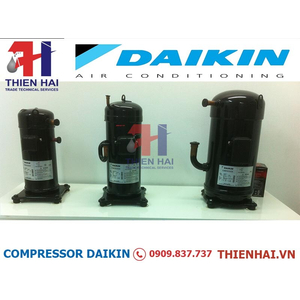

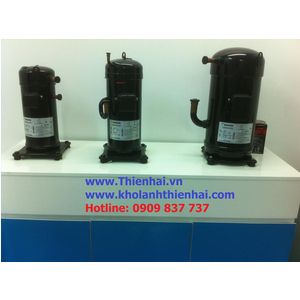

Compressor Daikin JT335

(1 đánh giá)

Mã sản phẩm : Jt335

Xuất xứ : Daikin

Bảo hành : 12 tháng

D model compressors are installed in DAIKIN Air Package Water Chillers. They are ideally used in combination with the Fan Coil Units and/or the Air Handling Units for air conditional of offices, hotels, restaurants and hospitals.

Giá sản phẩm : Hotline: 0909.83.77.37

Chi tiết

High Performance Scroll

★ 3 factors in high efficiency

Proper distribution of suction gas

Asymmetric scroll

Low distortion of fixed scroll

★ 3 factors in high reliability

Proper coolingof motor

Ball bearing

Dry type journal bearing

★ Application

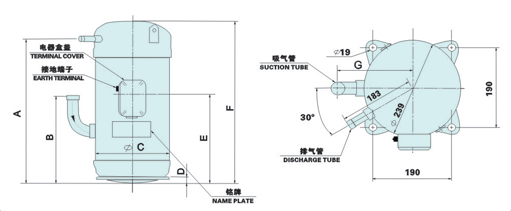

·D Model Standard Dimension (Refrigerant R22/R407C)

MODEL	A	B	C	D	E	F	G
JT212(236)D-YE(Y1L) JT212(236)DA-Y1	450	277	228	20	275	512	171.5
JT212（236）D-P1YE	450	277	228	20	275	554.2	171.5
JT265-335D-YE(Y1L) JT265-335DA-Y1L(Y1)	462	277	228	20	275	524	182.5
JT265-335D-P1YL	462	277	228	20	275	566.2	182.5

·D Model Compressor Range (Refrigerant R22)

OUTPUT (HP)	POWER SOURCE	MODEL	PERFORMANCE						CAPACITY cm³/r	TUBE CONNECTIONS
			TESTING POWER SOURCE	NOMINAL CAPACITY		TNPUT KW	CURRENT A	COP W/W		SUCTION TUBE mm	DISCHARGE TUBE mm
			TESTING POWER SOURCE	KW	BTU/H	TNPUT KW	CURRENT A	COP W/W		SUCTION TUBE mm	DISCHARGE TUBE mm
7	380V/50Hz 3 PHASE	JT212D-Y1L	380V/50Hz	21.3	73400	6.56	11.3	3.25	117.3	Φ25.4	Φ19.1
7.5		JT236D-Y1L	380V/50Hz	23.8	81900	7.27	12.4	3.27	131	Φ25.4	Φ19.1
8.5		JT265D-Y1L	380V/50Hz	26.5	91100	8.03	13.7	3.3	144.7	Φ31.8	Φ19.1
10		JT300D-Y1L	380V/50Hz	29.6	102000	8.94	15.2	3.31	163	Φ31.8	Φ19.1
11		JT315D-Y1L	380V/50Hz	30.8	106200	9.24	15.7	3.33	169.5	Φ31.8	Φ19.1
12		JT335D-Y1L	380V/50Hz	33.7	116000	10.08	17.2	3.34	184.2	Φ31.8	Φ19.1
7	380-415V/ 400-440V 3 PHASE 50/60Hz	JT212D-YE	380V/50Hz	21.3	73400	6.56	11.3	3.25	117.3	Φ25.4	Φ19.1
7		JT212D-YE	400V/60Hz	24.9	85700	7.74	11.9	3.22	117.3	Φ25.4	Φ19.1
7.5		JT236D-YE	380V/50Hz	23.8	81900	7.27	12.4	3.27	131	Φ25.4	Φ19.1
7.5		JT236D-YE	400V/60Hz	28.1	96600	8.62	13.2	3.26	131	Φ25.4	Φ19.1
8.5		JT265D-YE	380V/50Hz	26.5	91100	8.03	13.7	3.3	144.7	Φ31.8	Φ19.1
8.5		JT265D-YE	400V/60Hz	31.5	108500	9.55	14.6	3.3	144.7	Φ31.8	Φ19.1
10		JT300D-YE	380V/50Hz	29.6	102000	8.94	15.2	3.31	163	Φ31.8	Φ19.1
10		JT300D-YE	400V/60Hz	34.9	120200	10.51	16.2	3.32	163	Φ31.8	Φ19.1
12		JT335D-YE	380V/50Hz	33.7	116000	10.08	17.2	3.34	184.2	Φ31.8	Φ19.1
12		JT335D-YE	400V/60Hz	39.4	136900	11.92	18.4	3.34	184.2	Φ31.8	Φ19.1
7		JT212D-P1YE	380V/50Hz	21.3	73400	6.56	11.3	3.25	117.3	Φ25.4	Φ19.1
7		JT212D-P1YE	400V/60Hz	24.9	85700	7.74	11.9	3.22	117.3	Φ25.4	Φ19.1
7.5		JT236D-P1YE	380V/50Hz	23.8	81900	7.27	12.4	3.27	131	Φ25.4	Φ19.1
7.5		JT236D-P1YE	400V/60Hz	28.1	96600	8.62	13.2	3.26	131	Φ25.4	Φ19.1
8.5		JT265D-P1YE	380V/50Hz	26.5	91100	8.03	13.7	3.3	144.7	Φ31.8	Φ19.1
8.5		JT265D-P1YE	400V/60Hz	31.5	108500	9.55	14.6	3.3	144.7	Φ31.8	Φ19.1
10		JT300D-P1YE	380V/50Hz	29.6	102000	8.94	15.2	3.31	163	Φ31.8	Φ19.1
10		JT300D-P1YE	400V/60Hz	34.9	120200	10.51	16.2	3.32	163	Φ31.8	Φ19.1
12		JT335D-P1YE	380V/50Hz	33.7	116000	10.08	17.2	3.34	184.2	Φ31.8	Φ19.1
12		JT335D-P1YE	400V/60Hz	39.4	136900	11.92	18.4	3.34	184.2	Φ31.8	Φ19.1

TEST CONDITION OF COMPRESSOR
	EVAPORATING TEMPERATURE	CONDENSING TEMPERATURE	DEGREE OF UNDER COOLING	DEGREE OF SUPERHEAT	AMBIENT TEMPERATURE
COMPRESSOR	7.2℃	54.4℃	8.3℃	11.1℃	35℃

·D Model Compressor Range (Refrigerant R407C)

OUTPUT (HP)	POWER SOURCE	MODEL	PERFORMANCE						CAPACITY cm³/r	TUBE CONNECTIONS
			TESTING POWER SOURCE	NOMINAL CAPACITY		TNPUT KW	CURRENT A	COP W/W		SUCTION TUBE mm	DISCHARGE TUBE mm
			TESTING POWER SOURCE	KW	BTU/H	TNPUT KW	CURRENT A	COP W/W		SUCTION TUBE mm	DISCHARGE TUBE mm
7	380-415V 3 PHASE 50Hz	JT212DA-Y1	380V/50Hz	18.9	64500	6.87	11.7	2.75	117.3	Φ25.4	Φ19.1
8.5	380-415V 3 PHASE 50Hz	JT265DA-Y1	400V/50Hz	23.4	79800	8.36	14.1	2.8	144.7	Φ31.8	Φ19.1
10	380-415V 3 PHASE 50Hz	JT300DA-Y1	400V/50Hz	26.5	90400	9.44	16	2.81	163	Φ31.8	Φ19.1
12	380-415V 3 PHASE 50Hz	JT335DA-Y1	400V/50Hz	29.9	102000	10.7	17.9	2.79	184.2	Φ31.8	Φ19.1
10	380V 3 PHASE 50Hz	JT300DA-Y1L	380V/50Hz	29.6	101000	9.55	16.4	3.1	163	Φ31.8	Φ19.1
12	380V 3 PHASE 50Hz	JT335DA-Y1L	380V/50Hz	33.7	115000	10.81	18.3	3.12	184.2	Φ31.8	Φ19.1

TEST CONDITION OF COMPRESSOR
	EVAPORATING TEMPERATURE	CONDENSING TEMPERATURE	DEGREE OF UNDER COOLING	DEGREE OF SUPERHEAT	AMBIENT TEMPERATURE
COMPRESSOR	7.2℃	54.4℃	8.3℃	11.1℃	35℃
COMPRESSOR	5℃	55℃	8℃	5℃	35℃

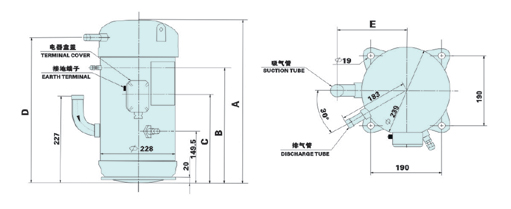

·D Model Tandem Compressor Standard Dimension (Refrigerant R22)

Capacity Range：7HP—12HPFree Connection

Reliable and Simple Oil Blance Design

Low Noice/Low Vibration

MODEL	A	B	C	D	E
JT212(236)D-TY1L(YE)	512	328	275	450	171.5
JT265(300,335)-TY1L（YE）	524	340	287	462	182.5

·D Model Tandem Compressor Range (Refrigerant R22)

OUTPUT (HP)	POWER SOURCE	MODEL	PERFORMANCE						CAPACITY cm³/r	TUBE CONNECTIONS
			TESTING POWER SOURCE	NOMINAL CAPACITY		TNPUT KW	CURRENT A	COP W/W		SUCTION TUBE mm	DISCHARGE TUBE mm
			TESTING POWER SOURCE	KW	BTU/H	TNPUT KW	CURRENT A	COP W/W		SUCTION TUBE mm	DISCHARGE TUBE mm
7	380V/50Hz 3 PHASE	JT212D-TY1L	380V/50Hz	21.3	73400	6.56	11.3	3.25	117.3	Φ25.4	Φ19.1
7.5		JT236D-TY1L	380V/50Hz	23.8	81900	7.27	12.4	3.27	131	Φ25.4	Φ19.1
8.5		JT265D-TY1L	380V/50Hz	26.5	91100	8.03	13.7	3.3	144.7	Φ31.8	Φ19.1
10		JT300D-TY1L	380V/50Hz	29.6	102000	8.94	15.2	3.31	163	Φ31.8	Φ19.1
11		JT315D-TY1L	380V/50Hz	30.8	106200	9.24	15.7	3.33	169.5	Φ31.8	Φ19.1
12		JT335D-TY1L	380V/50Hz	33.7	116000	10.08	17.2	3.34	184.2	Φ31.8	Φ19.1
7	380-415V/ 400-440V 3 PHASE 50/60Hz	JT212D-TYE	380V/50Hz	21.3	73400	6.56	11.3	3.25	117.3	Φ25.4	Φ19.1
7		JT212D-TYE	400V/60Hz	24.9	85700	7.74	11.9	3.22	117.3	Φ25.4	Φ19.1
7.5		JT236D-TYE	380V/50Hz	23.8	81900	7.27	12.4	3.27	131	Φ25.4	Φ19.1
7.5		JT236D-TYE	400V/60Hz	28.1	96600	8.62	13.2	3.26	131	Φ25.4	Φ19.1
8.5		JT265D-TYE	380V/50Hz	26.5	91100	8.03	13.7	3.3	144.7	Φ31.8	Φ19.1
8.5		JT265D-TYE	400V/60Hz	31.5	108500	9.55	14.6	3.3	144.7	Φ31.8	Φ19.1
10		JT300D-TYE	380V/50Hz	29.6	102000	8.94	15.2	3.31	163	Φ31.8	Φ19.1
10		JT300D-TYE	400V/60Hz	34.9	120200	10.51	16.2	3.32	163	Φ31.8	Φ19.1
12		JT335D-TYE	380V/50Hz	33.7	116000	10.08	17.2	3.34	184.2	Φ31.8	Φ19.1
12		JT335D-TYE	400V/60Hz	39.4	136900	11.92	18.4	3.34	184.2	Φ31.8	Φ19.1

TEST CONDITION OF COMPRESSOR
	EVAPORATING TEMPERATURE	CONDENSING TEMPERATURE	DEGREE OF UNDER COOLING	DEGREE OF SUPERHEAT	AMBIENT TEMPERATURE
COMPRESSOR	7.2℃	54.4℃	8.3℃	27.8℃	35℃
